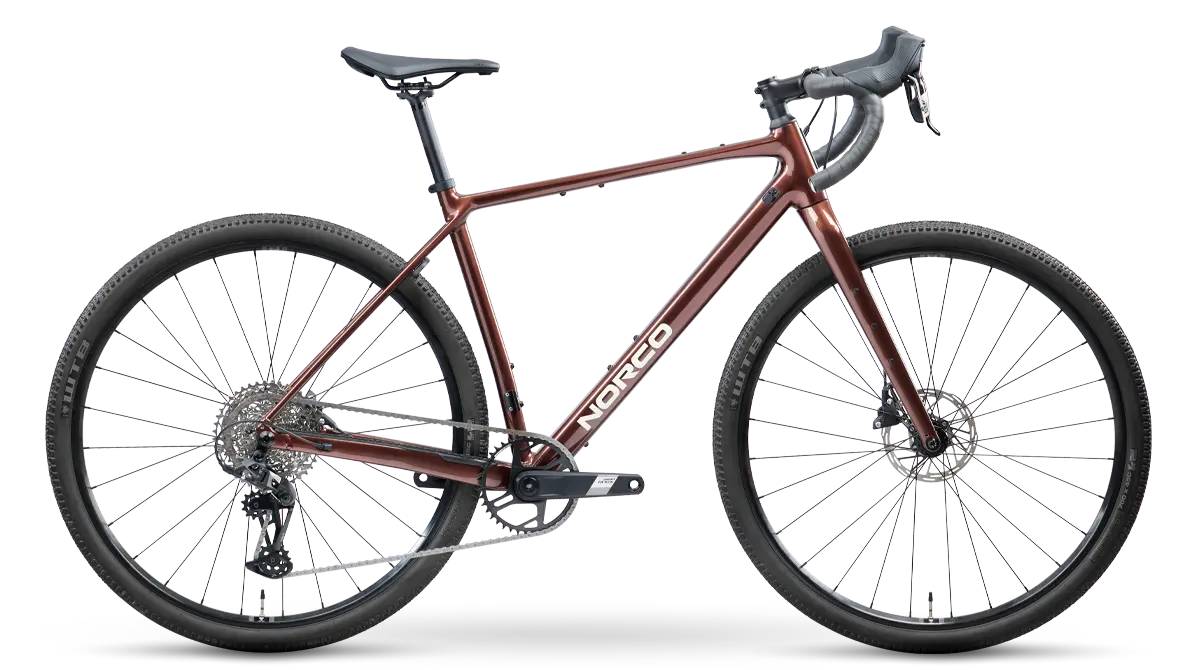

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search A1 is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts.
A progressive, modern gravel bike.
Search A1 features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.
The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.
| Frame | Search Butted Aluminum w/Smooth Welds |
| Fork | Search Carbon, 51mm Offset, 12x100mm TA |
| Rear Shifter | SRAM Apex HRD Shift-Brake System |
| Rear Derailleur | SRAM Apex XPLR Rear Derailleur, 12sp |
| Front Shifter | SRAM Apex HRD Shift-Brake System |
| Crankset | SRAM Apex D1 40T, 47.5CL, 165mm (S1,S2) – 170mm (S3,S4) -172.5 (S5) |
| Bottom Bracket | SRAM Dub BSA 68 Road Wide |
| Cassette | SRAM XPLR PG-1231, 11-44T, 12sp |
| Chain | SRAM Apex, 118L |
| Front Brake | SRAM Apex HRD Shift-Brake System |
| Front Brake Rotor | SRAM Paceline, 160mm, C-lock |
| Rear Brake | SRAM Apex HRD Shift-Brake System |
| Rear Brake Rotor | SRAM Paceline, 160mm, C-lock |
| Brake Levers | SRAM Apex HRD Shift-Brake System |
| Handlebar | Norco Super Flare Aluminum Compact, 40cm (S1,S2) – 42cm (S3) – 44cm (S4) – 46cm (S5), 16 Degree |
| Stem | Norco SL Alloy 70mm Length, 31.8mm Clamp |
| Seatpost | Norco Alloy, 27.2mm, 0Deg Offset, 350mm length |
| Headset | Sealed Cartridge Bearings, Tapered 1-1/8″ – 1.5″ ( IS42/28.6 | IS52/40 ) |
| Saddle | Selle Royale SRX Gravel, 148mm |
| Grips | Griptacular Shockproof Tape 3mm |
| Seatpost Clamp | Norco Aluminum, 31.8mm ID |
| Front Hub | Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock |
| Rear Hub | Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H, C-lock |
| Rims | WTB ST i25 2.0, 28h, 25mm ID |
| Front Tire | WTB Riddler 700x45C, TCS, 60tpi |
| Rear Tire | WTB Riddler 700x45C, TCS, 60tpi |
